Beautifully printed fabrics,

  Is the idea of the latest fashion trends,

  And we are ready for a one-button cut,

  And it is cut with environmentally friendly blades.

  Make your design cut out perfectly,

Cutting cloth type: high-grade printing women's clothing\printing culture shirt\sports clothing\various digital printing cutting pieces, using circular cutting table top.

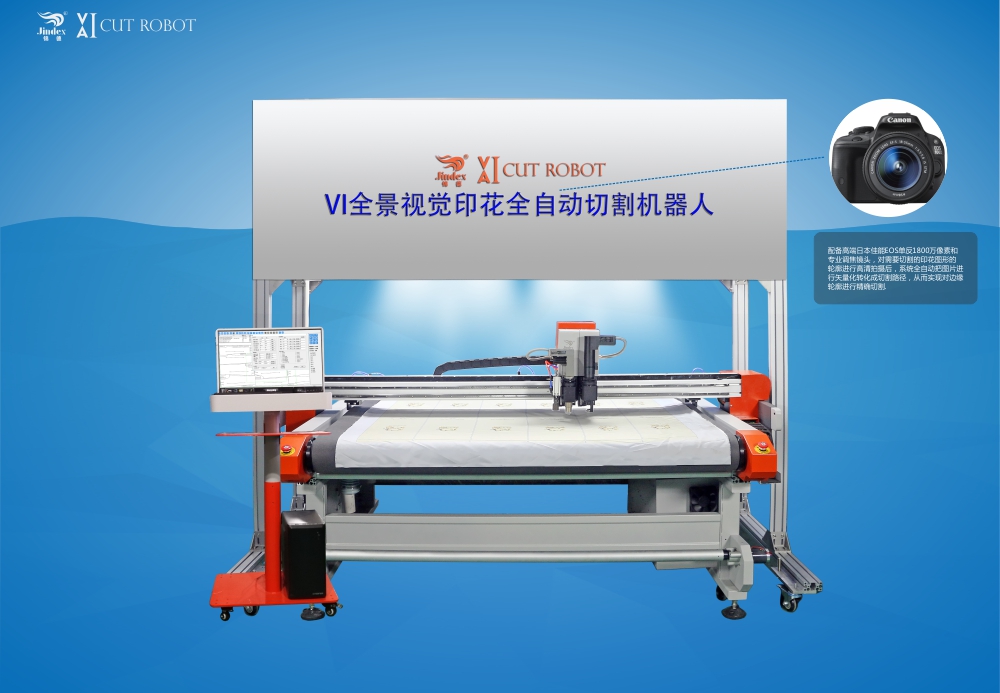

  Three models of printing cycle cutting robots:

  Cutting machine model 1: JD-PC-1611S; Cutting machine type 2: JD-PC-1613S; Cutting machine type 3: JD-PC-1813S;

Functions and Special Features

1. Automatic roll cutting printed fabric and digital printing cloth, from visual identification outline - cutting completed - automatic feeding, automatic identification again contour cutting - until the whole roll of fabric cutting is complete, without human intervention, real cutting robot of artificial intelligence, identification of the cutting accuracy of 0.25 MM can ensure more than 10 times faster than artificial efficiency.

2.The gear-driven high-speed round knife upgraded on the basis of the 2016 model is reliable and stable, without any belts, ensuring high-strength cutting for one year, and can also be replaced by a vibrating sharp knife,as well standarded with cut-and-cut punching module!

3.Jindex self-developed CCD SLR camera panorama vectoring system, equipped with high-end Canon EOS SLR 18 million pixels and professional focus lens, the contour to be cut after printing graphics HD shooting, the picture fully automatic system The vectorization is transformed into a cutting path to achieve precise cutting of the edge contour.

4. The pattern on the printed cloth is fast and the width is wide. It takes only 6 seconds to cut the vectorized cutting path generated by all the patterns in the 1.1-meter-long X1.6-meter wide format.

5. With 20 years of experience in the apparel industry, perfect docking of various domestic and international clothing CAD software, can be used as a large-format fast digital scanner, 6 seconds to quickly digitize all the patterns in the 1.1-meter-long X1.6-meter wide format. The accuracy is within 0.25mm and saved in PLT format for editing by other software.

6. The machine is simple and easy to learn, fit the actual needs of garment printing, digital printing and other industries, such as intelligent LCD control screen, real-time display of cutting trajectory, standard installation of double-volume, printing practitioners only need half a day training to operate independently Cutting.

7. Cutting with a round knife or oscillating knife, cutting environmental protection, no pollution, no smell, easy to recruit, the material after cutting does not yellow, not black, nor oil, the key point: safe and reliable, no accidental fire , resulting in ten years of hard work!

8. Can be connected to intelligent network port LAN PORT CCD camera connected to a computer for control, and full-page complex simultaneously identify a plurality of different graphical, after vectorization different graphics can be defined as different templates stored, and then all at once, according to the stored The template cuts all other graphics similar to the one on the machine.

9. The cutter blade material cost is much lower than the laser tube, the focusing lens replacement cost and time and cost of the laser power supply, without the need for three months would take about two thousand dollars and replacement of the lens of the laser tube, and the blades and the felt 3 months The average cost of consumables is only about 1/3 of that of laser machines.

10. Use of high strength helical gear rack precision linear guide, good rigidity, high precision and low noise, high-pressure pure digital servo-controlled motor and drive system to ensure accurate and high-speed cutting.

11. A large-flow vacuum adsorption device with built-in powerful inverter control, delay start does not affect the power supply. Can be customized for partition adsorption, standard with 8 automatic partition cutting, and equipped with speaker and silencer, even in the quiet office building is no problem.

12. It can also identify the cutting embroidery pattern, a variety of embroidery or printed trademarks, woven patterns, as well as advertising industry color printing KT, Chevron board billboards.
